Accessories
All accessories are supplied fitted and tested. Ordered into popularity groups, one being the most popular option. All pricing includes GST.
One
Jockey Wheel
$250
Swivel galvanized ‘jockey wheel’ rated to 545kg with the large wheel to run over the rough stuff. Supplied fitted.
Lifting Jacks
$250
2.7 tonne ‘lifting jacks’ lift the house in four to six locations enabling you to be able to remove or adjust the dolly and draw bar assembly. Levels your build platform in minutes to the required working height. Please note there is 75mm clearance form the inside of the jack to the outside of the trailer, ensure walls, joinery and cladding clear.
Brake Controller - Wireless
$1,200
The Cedro Core ‘wireless brake controller’ utilises a handpiece in the cab that controls gives feedback about the brakes. Using this system you can control the trailer brakes wirelessly from any capable towing vehicle. Great option if you don’t want to permanently wire in the brake controller to a single vehicle. Includes fitting and testing. See here for more info.
Two

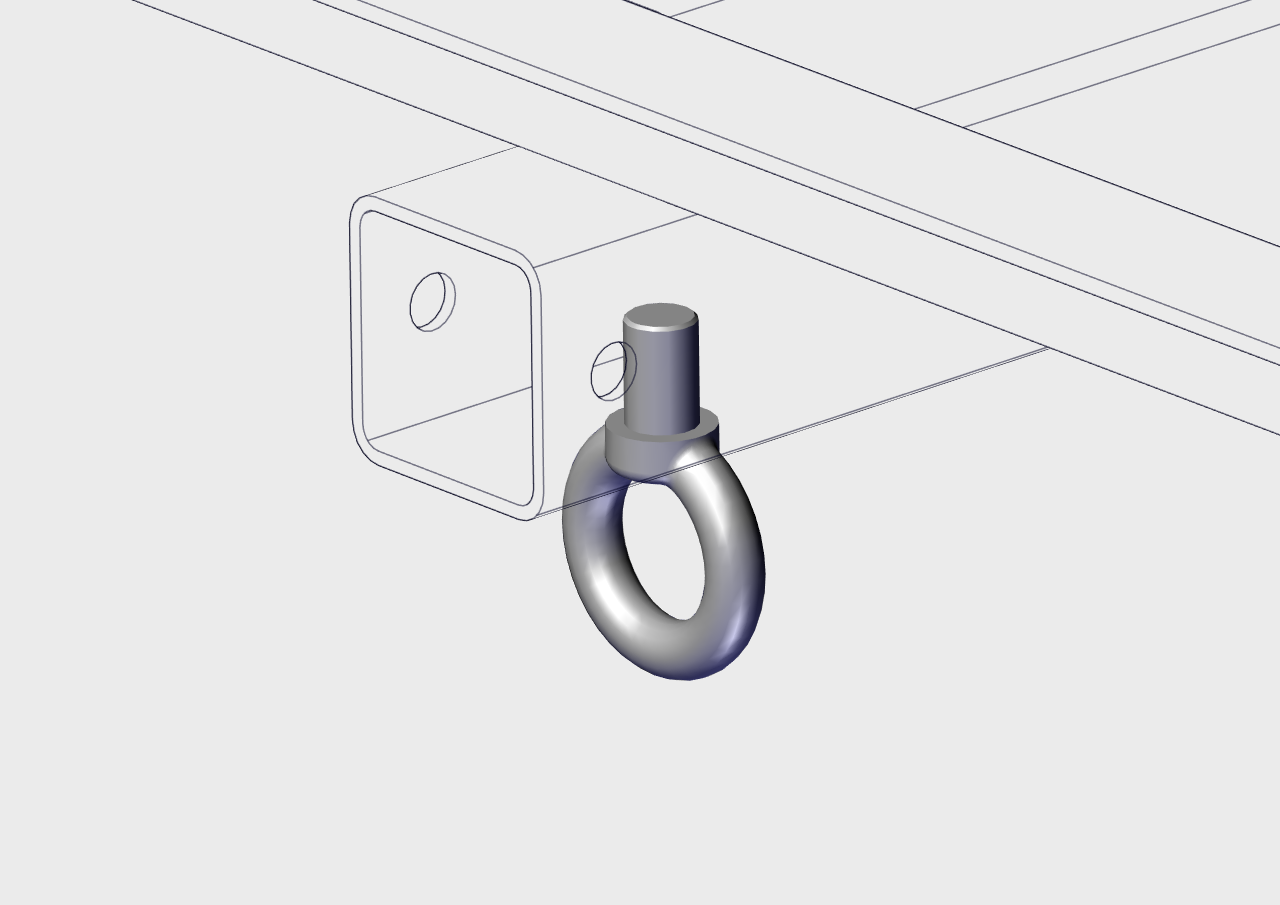

Tie Down Eye
$75
Tie down eye rated at 1.2 tonne each are used to secure the house to the ground or truck deck via something like a strop. Supplied fitted with nut.
Corner Steadies
$175
Four ‘corner steadies’ have wind down feet that stabilize the house in four corners. A drill with 19mm socket can be used for quick winding. They are not designed to lift the house like a lifting jack.
Water Tank & Cradle
$900
‘Water tank’ (140 liters) & Cradle for freshwater or grey-water. Pre galvanized and removable bolted steel frame. The tank is made from food-grade black polyethylene. Sealed tank for plumbing fittings to be added. Total maximum quantity of water tanks depends on trailer length, please enquire.
Spare Wheel Deck Mount
$400
‘Spare wheel’ and trailer mount bolted up ready to go.
Spare Wheel Drawbar Mount
$600
If you are wanting to use the drawbar and dolly for other uses this is the way to go for a ‘Spare Wheel’.
Lifting Arm
$150
The ‘lifting arm’ pulls out and is pinned in position and can be used to lift house via crane or hiab. These will reduce crane time therefore reducing costs. Supplied with thro bolt.
Lifting Point
$100
The ‘lifting point’ is used to accept the lifting jacks only on the Rhys trailer.
Three
Connector
$100
Connects two trailers sitting side by side using the existing lifting points quickly and easily. Used for setting up a deck beside the tiny house or a connected house using two decks. Supplied with two securing pins.
Utility Trailer Deck
Deck $2700
Removable sides $2500
Plywood Floor $800
1.75 x 3m hot galv dipped utility trailer deck ready to jack onto Smart Trailer drawbar and dolly. Tail and head gate swing down and are removable for longer loads. Use as a flatbed trailer without the sides or lay your own deck.
